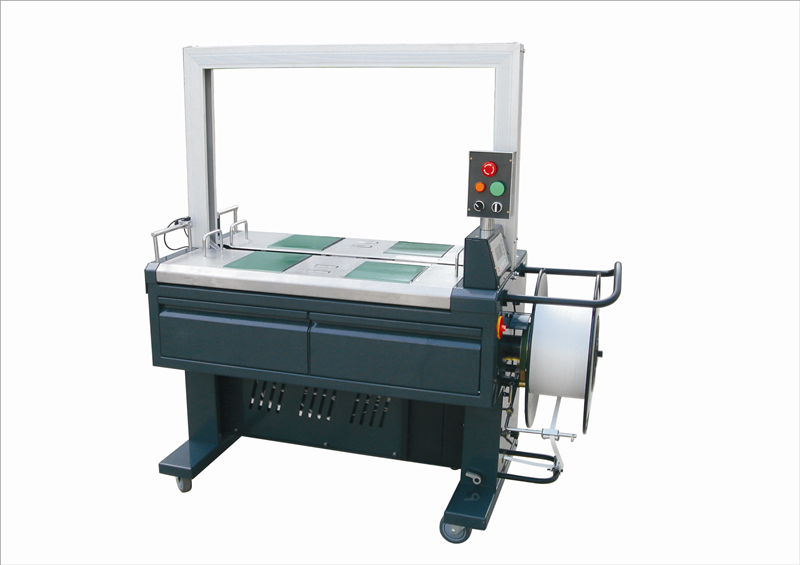

High platform automatic strapping machine is suitable for binding ordinary things. The utility model is suitable for bundling a assembly line with different package sizes and irregular shapes, and the belt conveyor can realize the operation of completely unmanned binding. The use of table power belt, lift type transmission mechanism, easy maintenance.
Technical characteristics:
1, adopt strong, durable, efficient K body as the main body.
2 adopt the interpersonal interface and excellent PLC control, fully digital operation, simple parameter adjustment and stable operation.
3, the design of special feeding and unloading track has enlarged the range of applicable packing belt and greatly reduced the cost of packing.
4, no refueling type maintenance, strapping firm, fast, long service life.
Modular Aluminum Alloy bow
frame design, convenient disassembly and assembly easy; automatic design, operation more convenient; the
maximum size of the strapping is decided by the bow, bow can be customized
according to the needs of users; motor, reducer, cam, tightening arm operation;
packing tightening force of excellence, less failure and convenient
maintenance; packing action soft, excellent durability, perfect function after
packing; finish packing
then stop motor, saving power
utility.
Lifting up panel, convenient for maintenance.
The new electric heating
device has fast heating and long service life.
Single chip electronic
control, fully functional and easy to operate.
|
|
KG86 |
KW86 |
|
Voltage (V/Hz) |
AC 220/50 |
|
|
Power(W) |
850 |
1050 |
|
Strapping Object Size (Max) (W×H) (mm) |
800×600 (Standard type) |
|
|
Strapping Object Size (Minimum) (W×H) (mm) |
80×50 |
250x50 |
|
Strapping Speed (S/Strap) |
2.15 |
|
|
Strapping Force(N) |
25-700(adjustable) |
|
|
Applicable Belt(PP or PE) (mm) |
Width 9-15 Thick 0.5-1.1 |
|
|
Work Platform Height(mm) |
830 |
|
|
Size (L×W×H) (mm) |
1420×650×1565 |
|
|
Weight (kg) |
248 |
260 |
